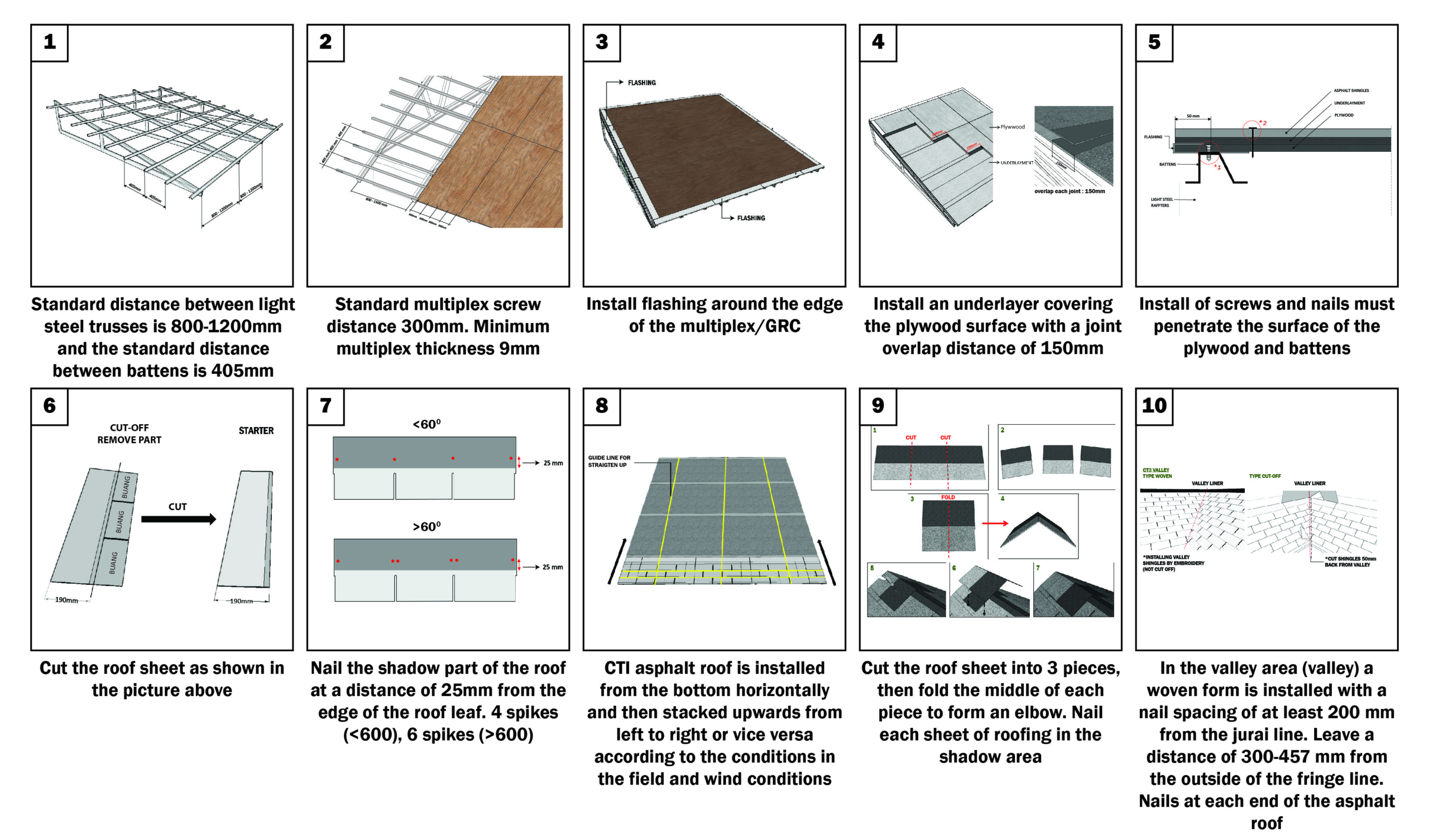

CTI INSTALLATION GUIDE
OTHER ROOFING MATERIALS – YOU MAY NEED
1. BATTENS INTERVAL STANDARD : 405 mm
2. PLYWOOD SCREWS INTERVAL STANDARD : 300 mm
3. FLASHING INSTALLATION
4.1 UNDERLAYMENT INSTALLATION (10⁰ – 15⁰ DEGRESS)
4.2 UNDERLAYMENT INSTALLATION (≥15⁰ DEGRESS)
5. TRANSVERSE SECTION
6. STARTER INSTALLATION
7.1 CT3 INSTALLATION AND NAILING POSITION
* CT3 INSTALLATION DEMO: https://www.youtube.com/watch?v=eSxpxoUYhc8
7.2 CT5 INSTALLATION AND NAILING POSITION
* CT5 INSTALLATION DEMO: https://www.youtube.com/watch?v=PU1zp7gcU4g&t=92s
7.2 CT5 SHINGLES FORMATION
7.3 CT6 INSTALLATION AND NAILING POSITION
8. SHINGLES INSTALLATION GUIDE LINE
9. RIDGE INSTALLATION
10. VALLEY SHINGLES INSTALLATION
* Animation Installation Shingles Bitumen CTI: https://youtu.be/tZZjxBYU9FM
